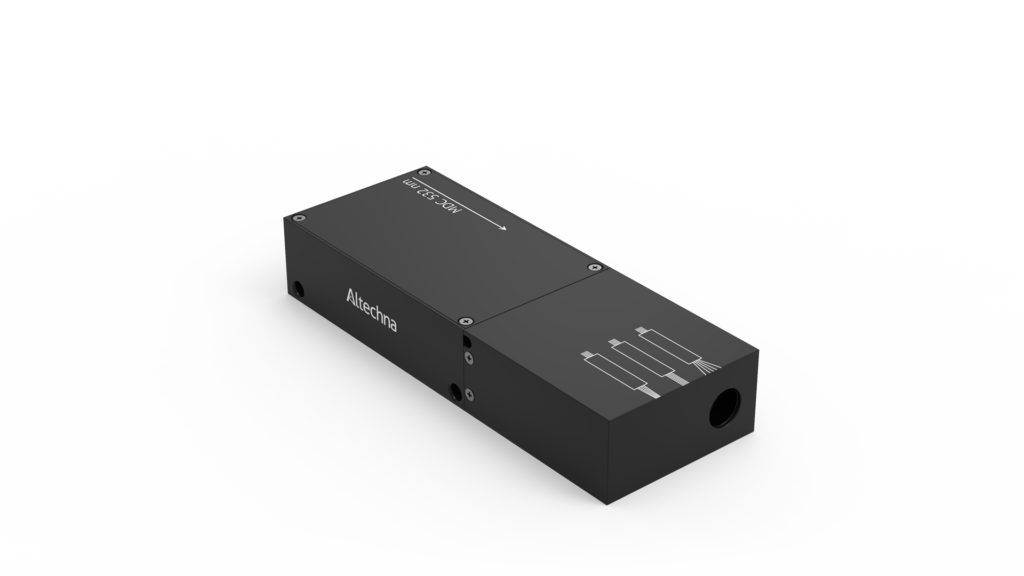

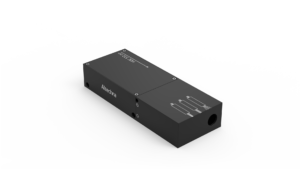

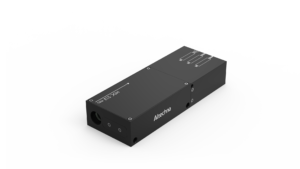

MDC – Motorized Divergence Controllers

MDC – Motorized Divergence Controllers

Max input beam diameter

Up to 6 mm at 1/e2

Beam wander

< 0.1 mrad

Divergence adjustment rate*

2 mrad/s* (15 mrad/s available on request)

Focus speed*

30 mm/s* (200 mm/s available on request)

Resolution

<2 μrad/step*

Transmitted wavefront distortion

<λ/4 @ 632.8 nm

LIDT

> 10 J/cm² @ 1064 nm; 10 ns; 10 Hz

Software platform

WindowsTM

Dimensions

35 x 70 x 150 mm

Weight

510 g

Control interface

USB, RS232, Ethernet

*Using F=+163 mm F-Theta lens when Ø3 mm (at 1/e2 intensity level) entrance beam has M2=1 and 1 mrad divergence.

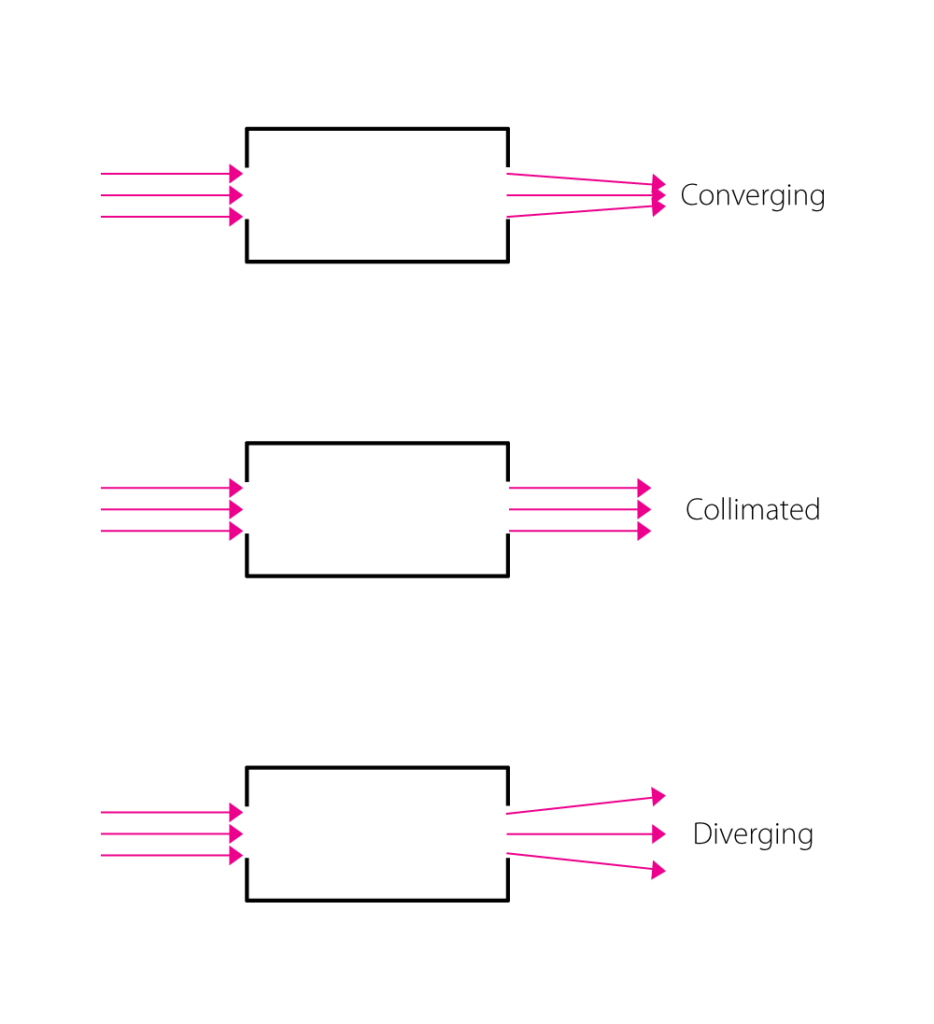

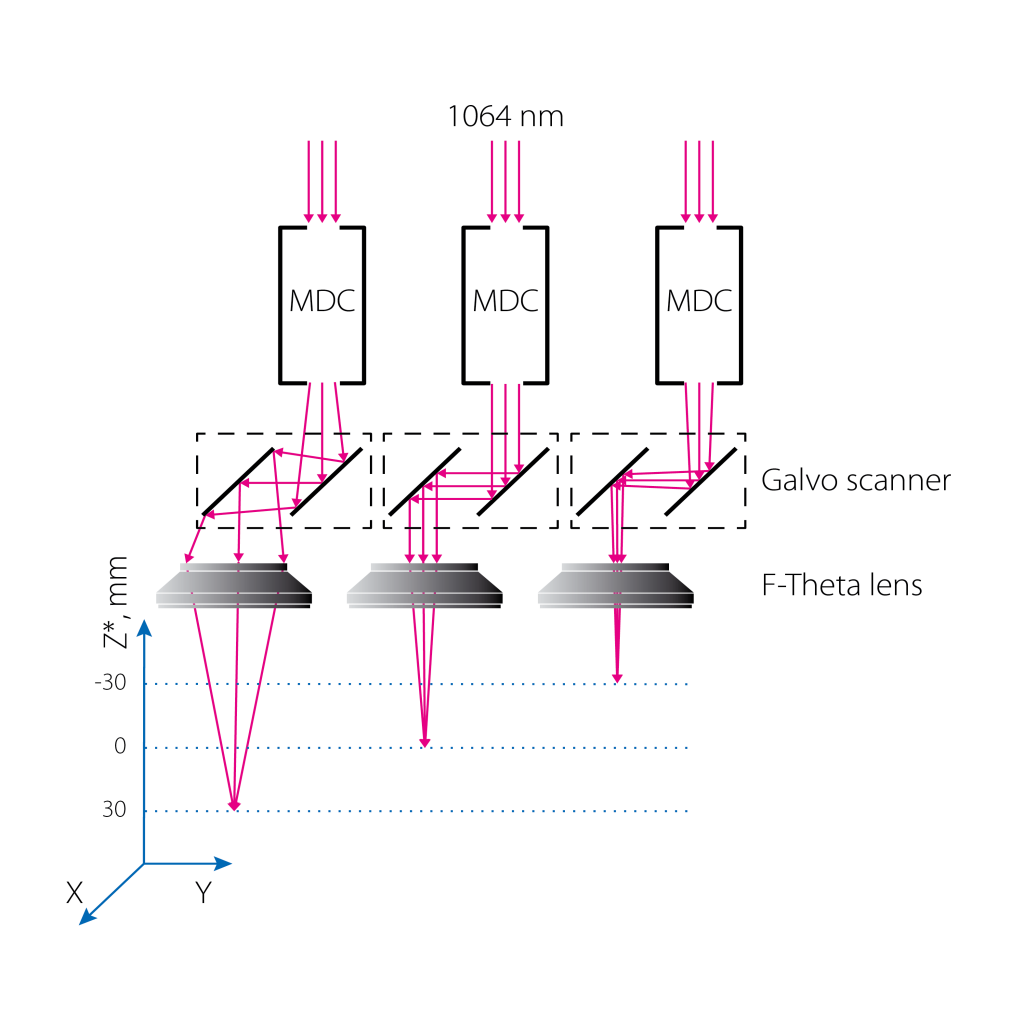

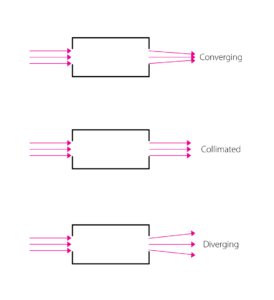

MDC is a motorized device enables rapid divergence adjustment. As an addon to 2D galvo scanners this device upgrades automated 2D fabrication setup to 3D. It is achieved by changing focal point position along z-axis when adjusting beam divergence. MDC can control working distance and focus beam diameter in real time. Device is lighter in weight and smaller in dimensions compared to other solutions in the market. Due to simplified design it is a cost saving and user-friendly device.

Features

  • Suitable for ultrafast picosecond and femtosecond lasers
  • Aberration-minimized design (special aberration compensation layout)
  • Reduced setup time by automatic divergence adjustment
  • Plug & play solution (controller included)
  • Active position tracking and correction function is available on request
  • Custom wavelengths are available in the range of 250-3000 nm
Typical Items for MDC - Motorized Divergence Controllers
Wavelength, nmFocus range*, mmDivergence adjustment range*, mradProduct ID
343-35565from -0.7 to +3.5MDC-0343-0355
515-53266from -0.9 to +4.1MDC-0515-0532
1030-106469from -1.8 to +6.6MDC-1064-1030

* Using F=+163 mm F-Theta lens when Ø3 mm (at 1/e2 intensity level) entrance beam has M2=1 and 1 mrad divergence.
